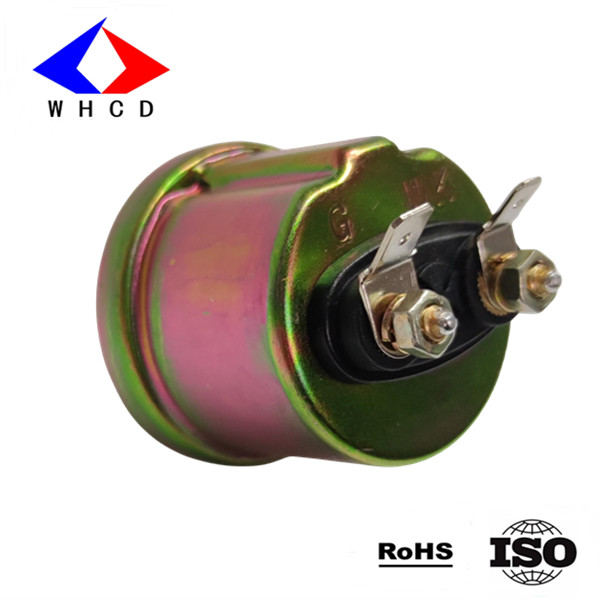

10-184Ω Engine Pressure Sensor with Insert Pins for Excavator
| Model Number | |
| Measuring range | 0-10Bar |
| Output resistance | 10-184Ω |
| Alarm | Null |
| Operating temperature | -40 ~125℃ |
| Operating voltage | 6~24VDC |
| Conduction power | <5W |
| Install torgue | 30N.m |
| Thread fitting | NPTF1/8 (customized as requires.Parameters ) |
| Material | Metal (color znic plated / Blue and white znic plated) |
| Protection rank | IP66 |
| Laber | Laser marking |
| Minimum Order Quantity | 50pcs |
| Delivery Time | within 2-25working days |
| Packaging Details | 25pcs /foam box , 100pcs / out carton |
| PE bag, Standard Carton | It also can be customized according to your requirements |
| Supply Ability | 200000pcs/Year. |
| Place of Origin | Wuhan,China |
| Brand Name | WHCD |
| Payment Terms | T/T, L/C,D/P, D/A ,UnionPay,Western Union, MoneyGram |
This Air Pressure Sensor the pressure range of the sensor is 0-10bar
The corresponding resistance value is 10-184Ω ,without Alarm
The thread fitting of Intallation:NPT1/8;
The sensors must work in a DC circuit with a nominal voltage of 12V.
The resistance value of the rheostat of the sensors must correspond to the values
The resistance values of the sensor rheostat when the ambient temperature changes
from minus 40°С to plus 120°С should not exceed the tolerances specified in the table.
Insulation resistance between the sensor contacts and the body at a temperature of 25±5°C and relative air humidity from 45% to 80% should be less than 5 MOhm.
The sensor must withstand a maximum current of at least 75 mA.
Sensors be made in a single design for operation in temperate and tropical climates.
The external surfaces of the sensors resistant to oil, diesel fuel, pesticides, fertilizers, antifreeze liquids, detergents, their vapors, and solar radiation.
Sensors be operational under the following environmental factors:
- ambient air temperature -40°С to + 120°С;
- relative air humidity from 45% to 95%;
- atmospheric pressure 61-106.7 kPa (457.5-800 mm Hg).
Sensors remain operational after inactivity at temperatures from minus 55°C to
plus 85°C with a temperature change of ±4°C per minute.
The sensors operational at the maximum temperature of the working medium (oil) - plus 120°C.
The external surfaces of the sensors must withstand exposure to salt fog for 96
hours.
Sensor operation mode is continuous.
Sensors be capable of withstanding pressure overload exceeding 50% of the
upper limit of indication range.
The sensors withstand under pressure the impact of vibration loads along three
axes at an acceleration of 200 m/s2 and a frequency from 50 Hz to 2000 Hz.
